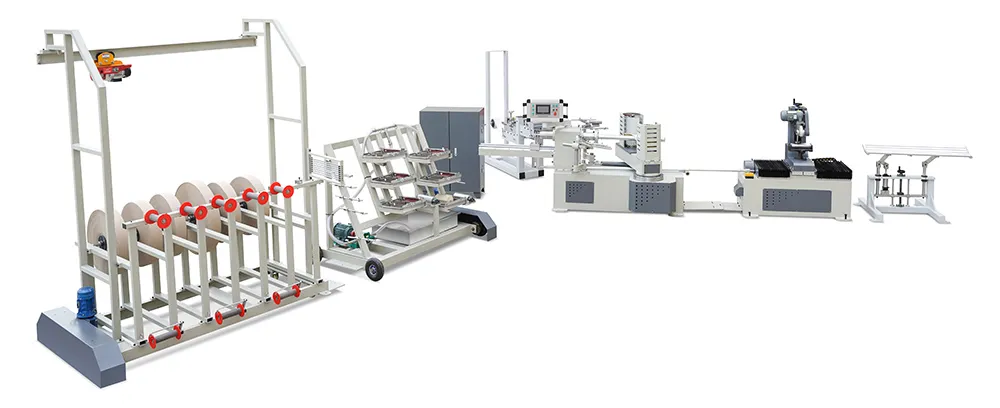

The paper tube winding machine is suitable for small and relatively thin paper-tube products such as plastic wrap core, paper core, toilet paper tube and paper canister.

Features
  • The paper tube winding machine is integrated with PLC control system with the main machine equipped with variable-frequency speed control. The HMI touchscreen features simple settings.

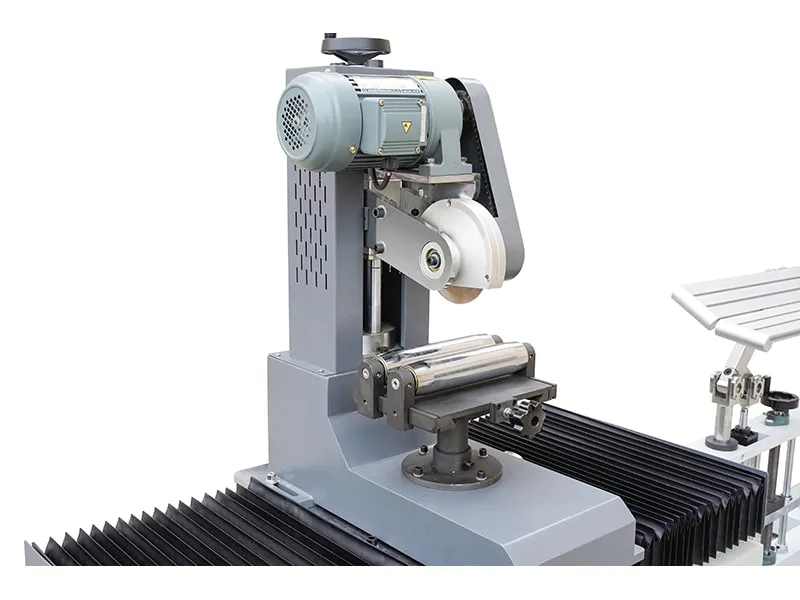

  • The cutting section is synchronized with servo control for more accurate cutting.
  • The multi-blade cutting system allows five blades for cutting, increasing efficiency.
Technical Specifications
Number of paper plies 10
Tube inside diameter 20–100 mm
Tube wall thickness 1–5 mm
Cut length 100–1,200 mm

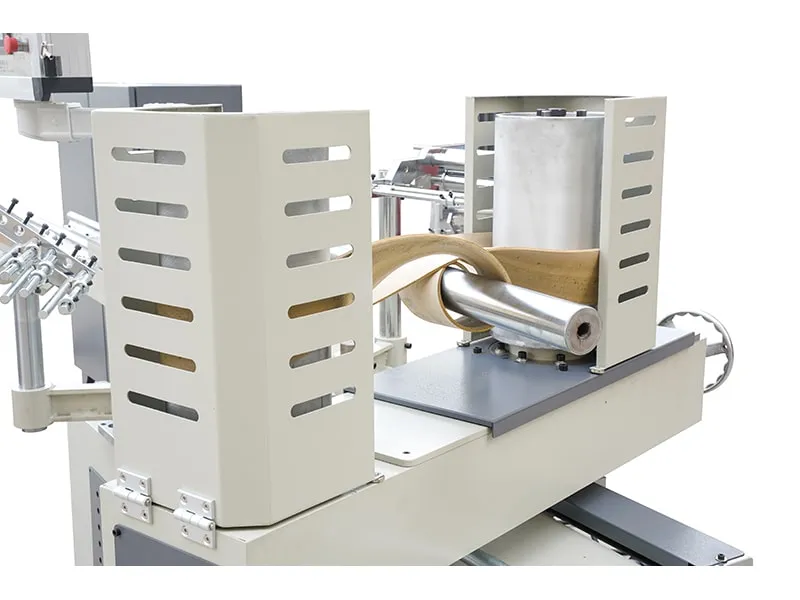

Winding head Two-head, single-belt system
Operating speed 1–30 m/min
Speed control Variable-frequency drive
Cutting system Multi-knife; 5 knives standard
Gluing Single- or double-side gluing
Length control Encoder
Operators required 1–2
Power supply 380 V, 3-phase, 50 Hz; customizable

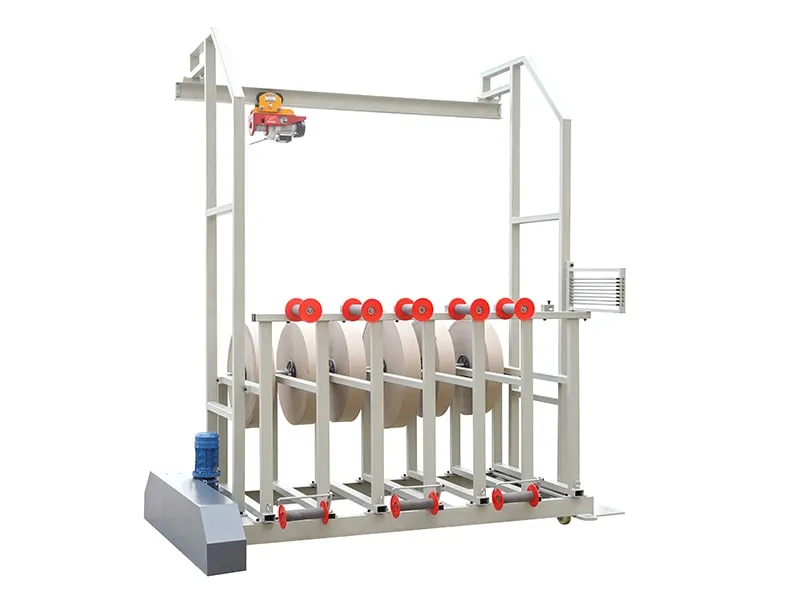

Paper stands 10, excluding the inner-layer paper roll stand

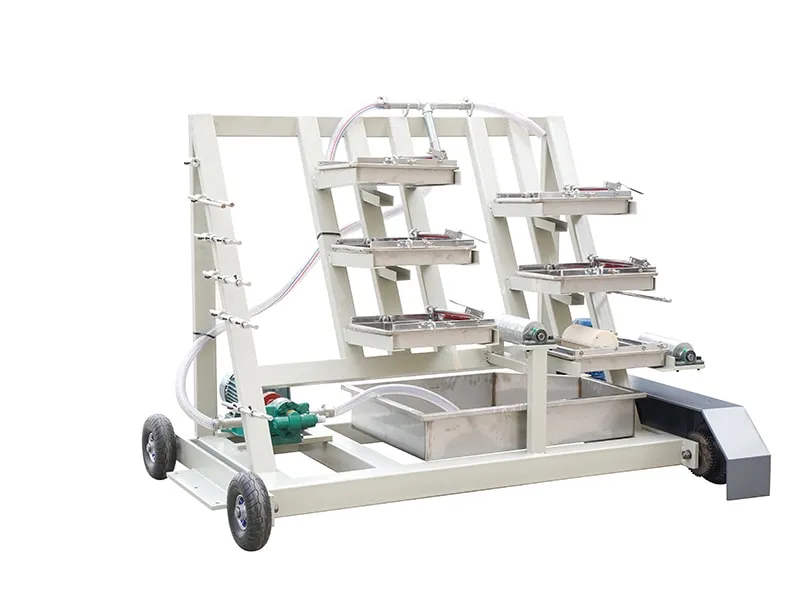

Glue stands 10

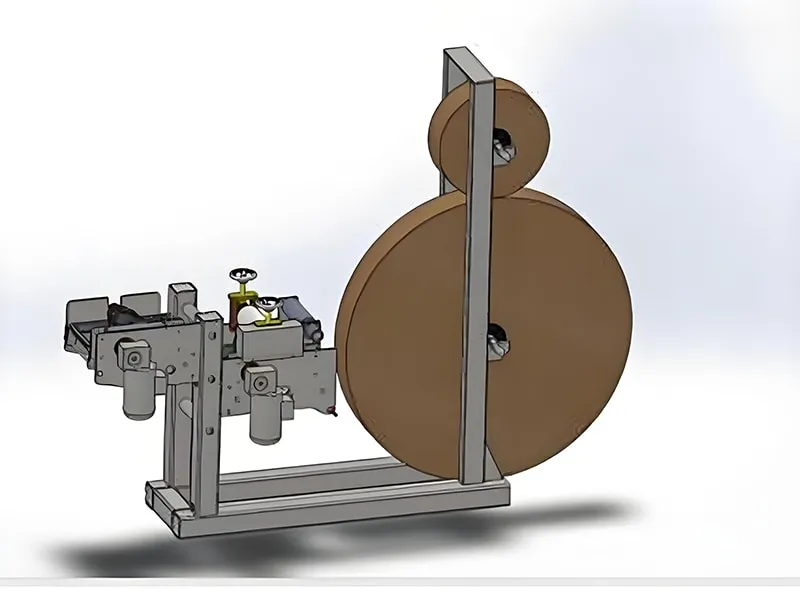

Inner-layer paper roll stand 1 set
Overall dimensions 6,355 × 1,565 × 1,800 mm
Machine weight 4,000 kg
